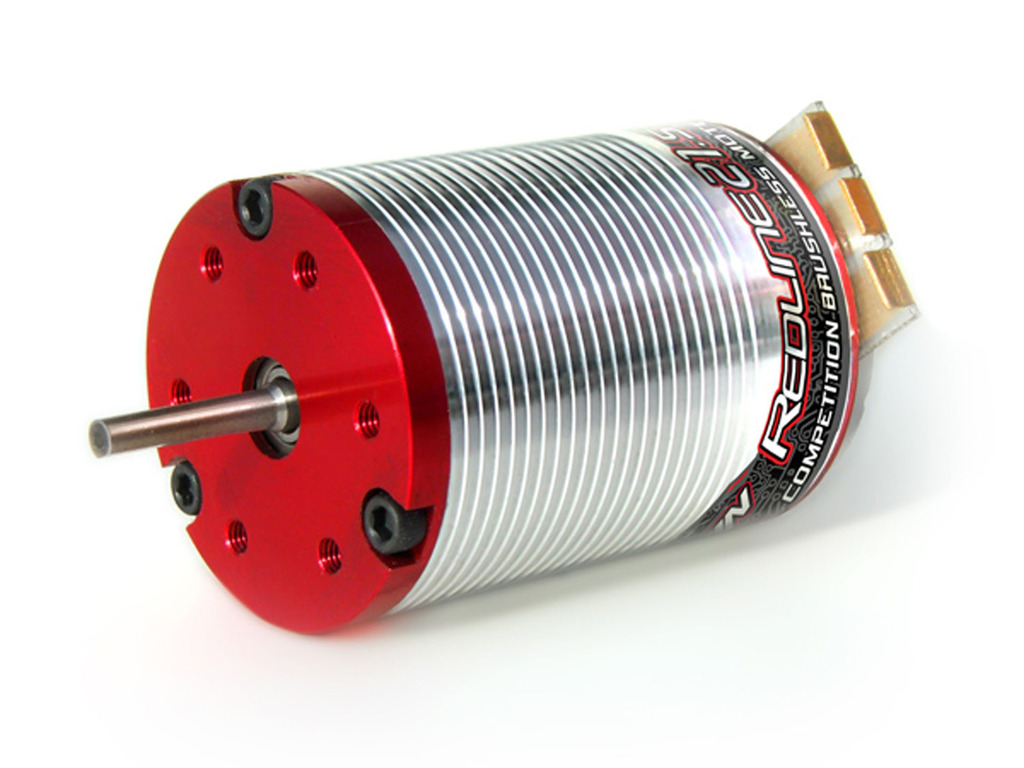

The Redline Sensored motor series is Tekin's contribution to high performance competition oriented motors. Engineered for power and efficiency, Redline Sensored motors offer a superior and reliable platform for all race applications and conditions. Tekin's Redline Sensored brushless motors deliver top A-main level competition performance.

Features:-

Dual-Plug Sensor Wire Harness for use with all Sensored and Sensorless Systems
CNC Machined Billet T6 Aluminum Heatsink Can
High Purity Copper Windings Maximizes Conductivity
Anodized EndBell Plate Maximizes Corrosion and Wear Resistance
High RPM Output
High Power Solder Tabs
High RPM Precision Bearings
Removable/Replaceable Rotor
Powerful Sintered Neodymium Magnet
Precision Engineered for Maximum Energy Conversion
Legal in Major Governing Race Bodies: ROAR, BRCA, EFRA, JMRCA, Tamiya TCS.

Weight: 6.3oz (180g)
Shaft Dimensions: 0.60"x0.125"(15.3x3.18mm)
Motor Diameter: 1.41”(35.85mm)
Motor Length: 2.09”(53mm)
Bearing Dimensions: front: 4x13x5mm rear: .125x.375x.15"
