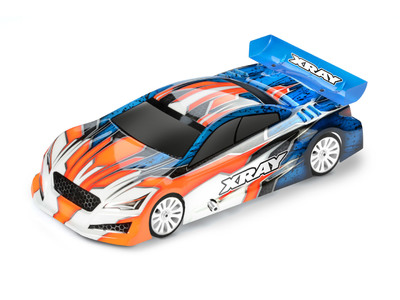

XRAY NT1 - 2018 SPECS - 1/10 LUXURY NITRO TC
Manufacturer: Xray
RC DisCo Part No: XR330014
Out of Stock Out of Stock - Discontinued Product
€619.2 (RRP inc. VAT)
€557.28 (RRP inc. VAT)



All-new 2018

  • All-new chassis with unique and innovative front Flex adjustment using an aluminum insertable brace. Using the aluminum brace the steering response and corner speed increase, without the aluminum brace the car is easier to drive
  • All-new rear layshaft bulkheads allow to use a bracket bushing that connects the layshaft bulkheads with rear bulkheads that reinforces the entire rear suspension which makes the car more free especially in high traction conditions.  Without the bracket bushing the car has more traction and is suggested to use for low traction conditions
  • All-new graphite brace of the rear bulkheads with new design for more comfortable access to the engine screws
  • All-new graphite brace connecting the rear layshaft bulkheads and radio plate stand with new design for more comfortable engine removal



GENERAL

  • Developed, designed and styled by Martin Hudy, manufactured exclusively by XRAY in Europe in the world's most sophisticated RC manufacturing facility
  • Pure racing design, premium luxury quality, highest performance
  • Premium, exclusive, and high-tech materials used throughout
  • Unique, super-strong composite materials with XRAY's self-developed secret compound mixtures for suspension and drivetrain parts
  • Low-CG nitro touring car platform
  • Unique and revolutionary chassis flex adjustment with optional 1-piece engine mounting system
  • Easy access to all drivetrain parts allows super-quick rebuilds and set-up changes



CHASSIS

  • CNC-machined Swiss 7075 T6 chassis, super-narrow design
  • Chassis design is stiffer under rear suspension area for better stability of the car
  • Chassis design has greater opening window under front suspension for better forward traction
  • Chassis design allows to mount front chassis brace into the chassis to reinforce the front flex for improved steering response
  • Chassis design allows to adjust rear arm wheelbase and allows to move the rear arm 2mm more to the back for improved traction
  • Chassis has the opening window for the flywheel also on the other side for equal flex
  • The cutouts under the engine area were removed for chassis reinforcement in engine area
  • Smooth chassis underside with countersunk fasteners
  • Rear layshaft bulkheads inserted inside chassis for better bulkhead centering and with added extra third screw positioned more backward for even stronger reinforcement of the layshaft
  • Lowered layshaft bulkheads to lower the rear 2 speed shaft to decrease the CG of the rotation parts
  • Front middle shaft holder with incorporated muffler mounting system to eliminate influence of flex is inserted inside chassis for better centering
  • Centralized, low-mounted receiver battery pack below fuel tank for easy access; micro-size receiver battery pack allows fuel tank to be lowered even further for better CG
  • CNC-machined 2.5 mm graphite radio plate for improved in-corner steering as well as improved flex of the front suspension for increased forward traction
  • Radio plate Multi-Flex™ adjustment bushing for super-fine tuning in servo saver area
  • Low-profile centralized 75cc fuel tank with hypertonic lid and internal stone-type filter, featuring specially-designed internal baffles for improved fuel pickup and scavenging
  • Fuel tank pressure cap has 1-pc profiled seal for perfect fit and sealing
  • Increased clearance between fuel tank and radio plate allows more fuel tank movement
  • Super-lightweight aluminum bulkheads create a central backbone for precision-engineered suspension geometry and chassis flex, allowing easy access to all parts
  • Super-lightweight aluminum suspension holders for superior suspension geometry and chassis flex, allowing easy assembly & disassembly of suspension arms
  • Integrated front & rear belt tension adjustment in upper clamps
  • Unique compact lightweight radio case with optimized internal layout for receiver and an optional on-off switch
  • Car holder features an eyelet which allows the fuel tank opener string to be securely captured, aids in consistent refueling
  • Aluminum rear-front 1 piece holder allows to mount rear bulkheads into the holder for improved flex of the rear suspension. The rear-front 1 piece holder is inserted into the chassis for better centering
  • Rear layshaft bulkheads allow to mount the shim which connects the layshaft bulkheads with rear bulkheads which reinforces the whole rear suspension for improved steering and rotation in high traction conditions
  • Graphite roll-center bridge made from thicker material to remove unwanted flex of the rear suspension and to improve cornering speed
  • Aluminum radio plate mounts mounted to the chassis in same distance from the center of the chassis as well as in same line for more equal chassis flex characteristics
  • Graphite brace connects the rear layshaft bulkheads and radio plate stand and allows for comfortable engine removal



ENGINE & CLUTCH

  • Quick-set 2-piece aluminum engine mounting system with fixed engine position for super-easy engine installation and gear mesh adjustment
  • Engine mounts design ensures equal flex of the chassis under the engine area
  • Optionally-available 1-piece engine mounting system for quick & easy engine exchanges, gear mesh adjustment, and chassis flex adjustment
  • Easily-adjustable 3-shoe XCA (XRAY Centrifugal-axial) reverse clutch provides smooth & fast acceleration, while increasing the clutch shoe lifespan
  • Swiss 7075 T6 hardcoated flywheel
  • Clutchbell, clutch nut, flywheel nut, and thrustbearing collar manufactured from special HUDY Spring Steel™ for maximum lifespan and durability
  • Hardcoated flywheel, clutch disc, and spring cup manufactured from premium Swiss 7075 T6 aluminum
  • Clutchbell/pinion gear construction allows super-precise assembly
  • Swiss 7075 T6 machined pinion gears have individually-machined teeth made on a high-precision gear production machine, then are specially hardcoated for maximum life
  • Carbide axial thrustbearing and high-tensile spring



BRAKES

  • Strong, highly-efficient brake system
  • Laser-cut, precision flat-ground ventilated steel brake disk for true, wobble-free rotation
  • High-grip pads are resistant to overheating, to give strong, fade-free braking
  • Brake pads made from the SLS brake material for smoother, consistent braking and provides better braking feeling
  • Laser-cut steel brake pad backing plates
  • CNC-machined steel brake cam is ball-bearing supported for super-smooth and precise brake control



DRIVETRAIN

  • Super smooth and efficient 1/10 touring car drivetrain
  • Ultra-smooth, highly-efficient belt/pulley drivetrain with super-low rotating mass
  • Extensive use of HUDY Spring Steel™ in drivetrain parts gives highest performance and unmatched lifespan
  • Lightweight differentials for enhanced efficiency of the lightweight drivetrain system
  • Super-smooth, no-slip, high-durability gear differentials are easily adjustable with different diff oils
  • Solid axle diff adapter transforms differential into a solid axle (spool)
  • Diff outdrives manufactured from HUDY Spring Steel™ are specially ground for maximum precision
  • Easy differential access: front diff accessible by removing 6 screws, rear diff accessible by removing 4 screws
  • High-performance HUDY Spring Steel™ front CVD drive shafts
  • Rear dogbone-style HUDY Spring Steel™ drive shafts mate to rear wheel axles
  • PUR® reinforced high-efficiency, low-friction, fine-pitch drive belts
  • Pulleys molded from low-friction composite material for extra-long lifespan
  • Complete set of high-speed, blue-sealed ball-bearings, degreased, lightly oiled with Aero Shell Fluid 12™ for maximum drivetrain efficiency
  • Main ball-bearings are oversize with extra-strong bearing frames for smooth, efficient running even under extreme conditions
  • CNC-machined ultra-lightweight wheel hex drive hubs made from Swiss 7075 T6 black-coated aluminum, featuring clamping design for ultra-solid mounting of the wheel on the hub. Optionally-available hex drive hubs offer different offsets for adjusting track-width.
  • Adjustable side belt tensioner mounted directly to the aluminum radio plate holder eliminate the wear



2-SPEED TRANSMISSION

  • Super-efficient 2-speed transmission offers better bottom-end power & acceleration, lower rotating mass
  • Small, lightweight gear carrier and alu drive flange with 1-way bearing
  • Precision manufactured super-smooth middle layshaft made from tough HUDY shaft steel for 2-speed, specially heat-treated for extra strength and long life
  • High-quality 1-way bearing is hand-ground before installation for maximum running precision and strength
  • 2-speed spur gear adapter CNC-machined from Swiss 7075 T6 for precision fitting of 1-way bearing, allowing super-precise and wobble-free installation of spur gears
  • Superior precision-molded spur gears made from special composite mixture, super-quiet & true running
  • High-precision 2-speed adapter manufactured from hardened steel



SUSPENSION

  • Advanced suspension geometry, optimized and fine-tuned for high-competition racing
  • Aluminum Ackermann plate for extra reinforcement
  • Steering blocks designed for use with aluminum Ackermann plate allows a wide range of Ackermann & bump-steer adjustment
  • Steering blocks allow mounting of optional graphite aero discs for improved steering
  • Rear uprights allow mounting of optional graphite aero discs for improved traction and stability
  • Lightweight, durable, reinforced suspension parts molded from XRAY's own composite mixture for suspension parts. Each suspension part is molded from a high-tech composite that is specially formulated for the particular part.
  • Highly-polished, high-tensile steel suspension pivot pins, polished for smooth suspension action
  • I.S.S. (Integrated Suspension Settings™) for fully-integrated adjustment possibilities
  • Full suspension adjustment via eccentric bushings in front upper arm and rear lower arm holders
  • Tiny, tough steering blocks made from special composite mixture have 0° kingpin angle; +1°kingpin steering blocks optionally available
  • Choice of front anti-roll bar systems: wire or blade-type (both included)
  • Optional front & rear anti-roll bar wires available for fine tuning
  • Ball-bearing anti-roll bar mounting system
  • Easy rear anti-roll bar setting
  • Small, robust rear uprights feature easily-adjustable upper roll center positions
  • Premium HUDY Spring Steel™ adjustable turnbuckles with stiff core
  • Precision-ground steel pivot balls for robustness and enhanced lifespan; optional lightweight aluminum and titanium pivot balls available
  • Strong M10 composite nuts for minimal weight and smooth pivot ball movement



STEERING

  • Centralized servo saver is ball-raced for super-precise, smooth operation
  • Adjustable spring preload tension
  • Easily-adjustable Ackermann positions
  • Steering blocks feature Ackermann & bump-steer adjustment for improved steering



SHOCKS

  • Shocks provide maximum traction and steering, optimized up & down travel
  • Shock pistons with 2- and 3-hole designs and 1.0/1.1/1.2mm holes, made from special Delrin™ material to ensure extreme roundness and extra-smooth damping
  • CNC-machined shock bodies made from Swiss 7075 T6 aluminum, externally fine-threaded for precise ride height adjustment
  • Low-profile internal membranes for super-smooth, precise damping
  • Specially-hardened, polished shock shafts for maximum strength and ultra-smooth operation
  • XRAY self-developed and manufactured racing springs are hand-selected and tested for maximum precision, equal length, and equal damping characteristics
  • Graphite rear shock tower made from thick material for improved high speed steering. Body posts are mounted on the shock tower wide for better stability.



BODY & WHEELS

  • Central body mount (on radio plate) protects against body deformation while refueling, increases car stability in high-speed corners
  • Front upper & lower composite bumpers molded from special composite material to withstand hard impacts
