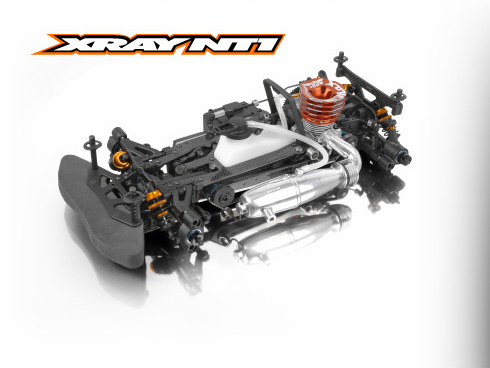

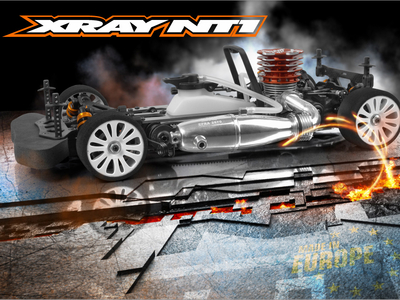

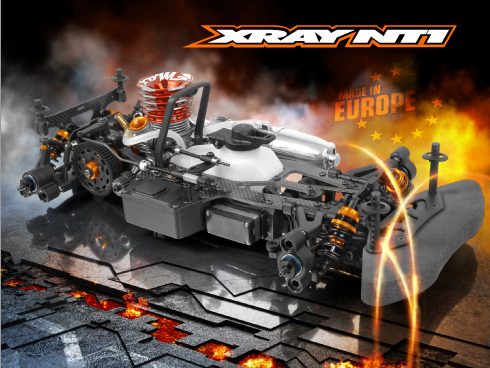

XRAY NT1 - 2014 SPECS - 1/10 LUXURY NITRO TC
Manufacturer: Xray
RC DisCo Part No: XR330009
Out of Stock Out of Stock - Discontinued Product
€504 (RRP inc. VAT)
€252.00 (RRP inc. VAT)

2014 NEW

New chassis

New radio plate

New fuel tank mounting system

New center body mount

New smaller 2-speed

New front middle shaft mounting system

New shock towers

New shocks

New front anti-roll bar mounting system

New battery holder





GENERAL

Developed, designed and styled by Dipl. Eng. Juraj Hudy & Martin Hudy, manufactured exclusively by XRAY in Europe in the world's most sophisticated RC manufacturing facility

Pure racing design, premium luxury quality, highest performance

Premium, exclusive, and high-tech materials used throughout

Unique, super-strong composite materials with XRAY's self-developed secret compound mixtures for suspension and drivetrain parts

Low CG nitro touring car platform

Unique and revolutionary chassis flex adjustment with optional Multi-Flex™ 1-piece engine mounting system

Easy access to all drivetrain parts allows super-quick rebuilds and set-up changes





CHASSIS

Newly-redesigned chassis with improved steering characteristics

Redesigned & repositioned front middle shaft holder, with incorporated muffler mounting system to eliminate negative flex influence

CNC-machined Swiss 7075 T6 chassis, super-narrow design

Smooth chassis underside with countersunk fasteners

Optionally available graphite reinforcing inserts & balancing weights

Centralized, low-mounted receiver battery pack below fuel tank for easy access; micro-size receiver battery pack allows fuel tank to be lowered

Optionally-available graphite cover for battery pack has integrated Multi-Flex Technology™ functionality to additionally reinforce the chassis

CNC-machined 2.5 mm graphite radio plate

Radio plate Multi-Flex™ adjustment for super-fine tuning of chassis flex via fixed or flex bushings

Low-profile centralized 75cc fuel tank with hypertonic lid and internal stone-type filter, and specially-designed internal baffles for improved fuel pickup and scavenging

Fuel tank pressure cap has 1-pc profiled seal for perfect fit and sealing

Increased clearance around fuel tank in the radio plate allows for more fuel tank movement

Super-lightweight bulkheads were designed as the central backbone for precision-engineered suspension geometry and chassis flex, while allowing easy access to all parts

Integrated front & rear belt tension adjustment in bulkheads

Bulkhead clamps with additional extended roll center position, in addition to standard roll center positions

Unique compact lightweight radio case with clean design and internal layout for receiver and optional on-off switch

Car holder features an eyelet which allows the fuel tank opener string to be captured securely and ensure more consistent refueling

XRAY NT1 - 2014 SPECS - 1/10 LUXURY NITRO TC
XRAY NT1 - 2014 SPECS - 1/10 LUXURY NITRO TC
XRAY NT1 - 2014 SPECS - 1/10 LUXURY NITRO TC
