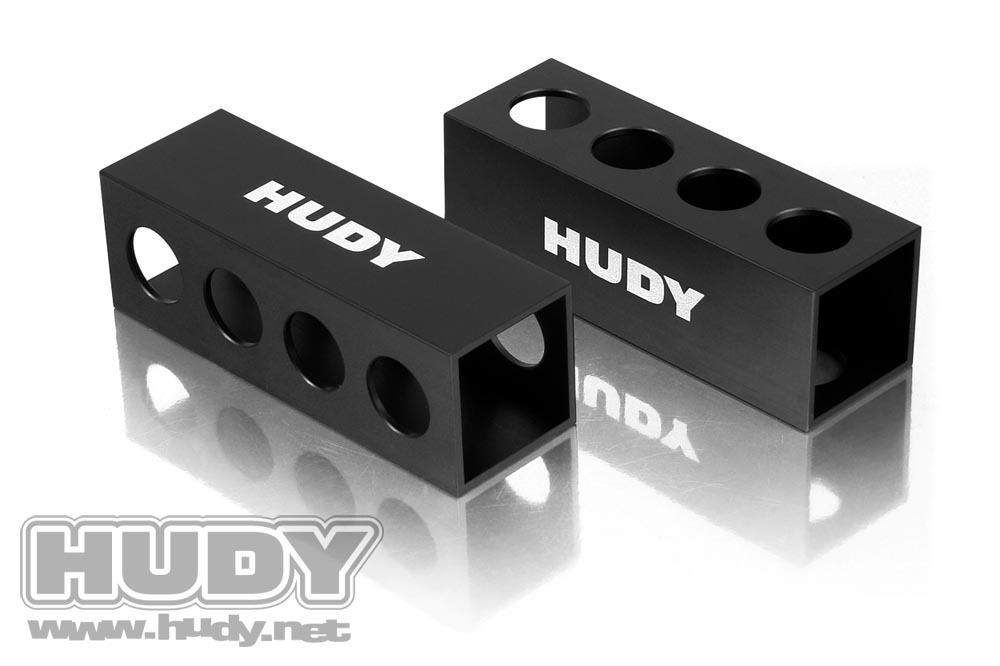

Lightweight chassis droop gauge support blocks are a “must have” set-up tool for every off-road or truggy racer. The aluminum frame is CNC machined and drilled for super lightweight design and exact the size guarantees accurate & precise downstop measurements.



Proper chassis droop is a critical yet frequently overlooked set-up feature of modern 1/8 off-road cars and truggies. It is essential for proper handling to achieve balanced down-travel on each side of the suspension and as such HUDY is the first RC company to develop and produce the first purposefully-designed 1/8 off-road large-size droop gauge support blocks.

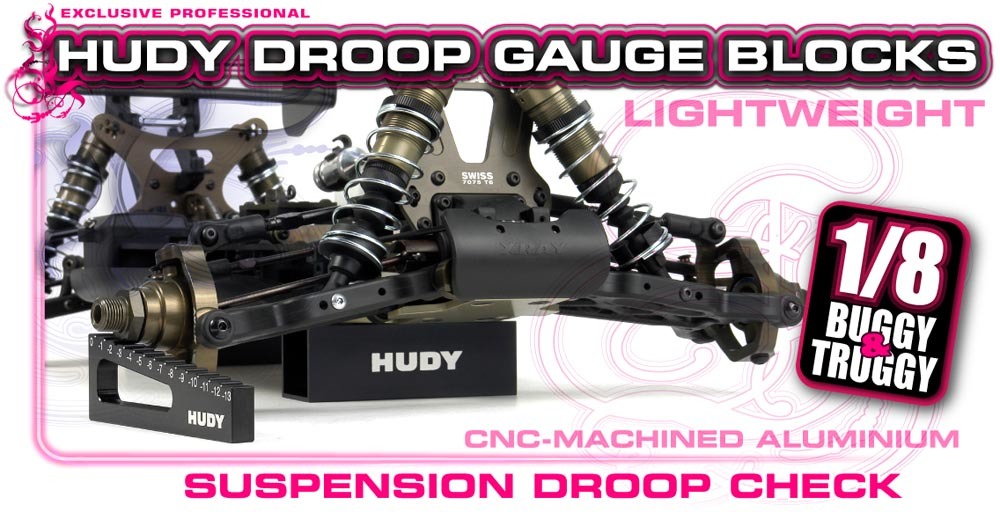

Using the support blocks is simplicity itself. Remove the tires from the buggy and using flat HUDY Set-up Board #108202 place the chassis on the support blocks; place the front support block below the servo saver, and place the rear support block below the rear suspension mounting. Using the #107717 Chassis Ride Height & Droop Gauge 0 to -13 mm for 1/8 Off-Road ( www.rcdisco.com/part-info.php )with elevated scales, measure the droop under the wheel axle hex. Use the downstop screws to alter the suspension droop on each side of the car; the shocks should extend out far enough that they do not limit the suspension arm movement. Ensuring equal and proper suspension droop will allow the car to achieve a proper traction level and weight transfer depending on track conditions. Please refer to your buggy’s (or truggy’s) set-up book to learn more about droop

adjustment.
